Technische Beschreibung

• RAHMEN

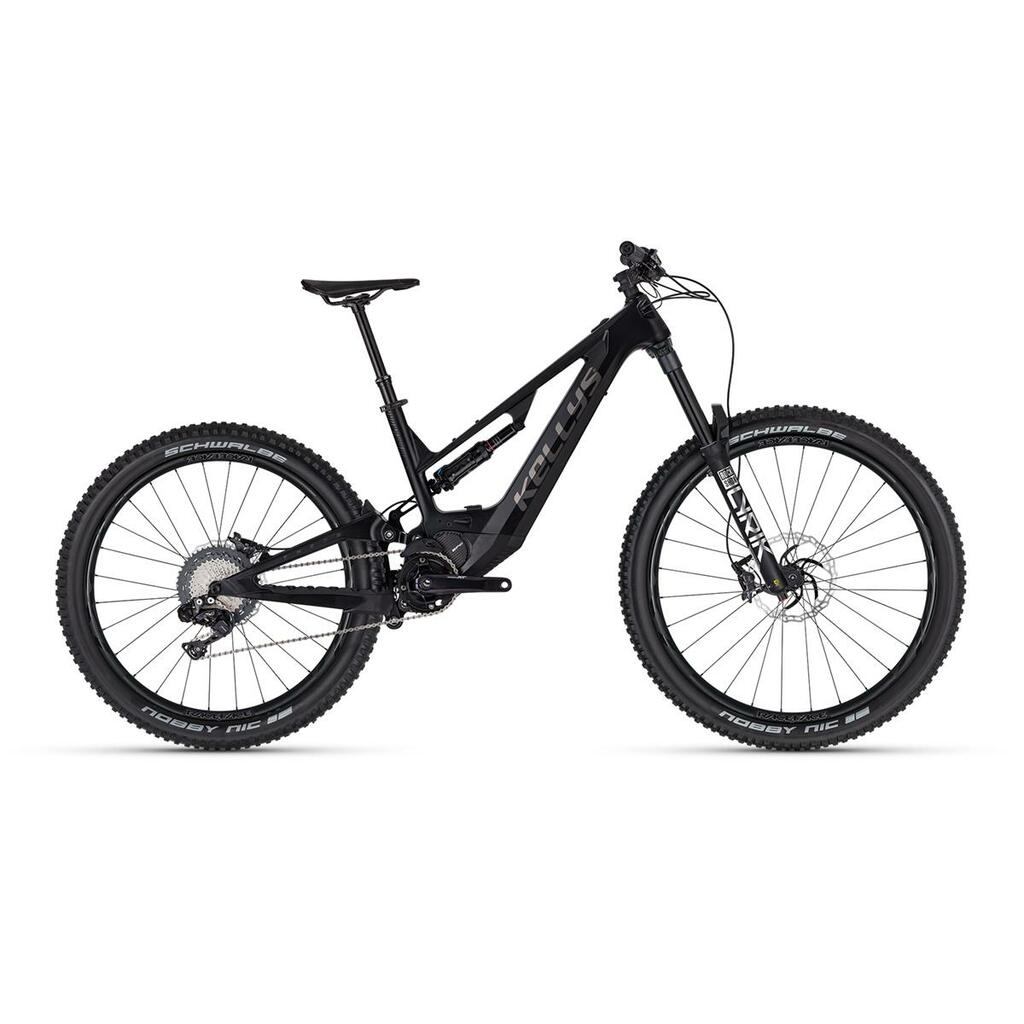

  KELLYS THEOS 2024 F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
• Gabel

  ROCK SHOX Lyrik Ultimate (29") Boost, 150 mm, DebonAir / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
• Federweg vorne

  150 mm
• Motor

  SHIMANO EP8, 85 Nm, 36 V
• Akku

  KELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah
• Schaltwerk (hintere Schaltung)

  SHIMANO Deore XT Di2 M8150 (direct mount)
• Schaltwerk

  SHIMANO SW-EN600-R Di2 for shifting
• Bremse vorne

  SHIMANO XTR M9120 Hydraulic Disc - GALFER Fixed Disc Wave®, DB004W 203 mm
• Bremse hinten

  SHIMANO XTR M9120 Hydraulic Disc - GALFER Fixed Disc Wave®, DBO34W 203 mm
• Kurbel

  SHIMANO EM900 Hollowtech / CRE80-12-B (36T) - length 165 mm
• Lagersatz

  ACROS 1.8 tapered semi-integrated
• Pedale

  plastic
• Patrone

  SHIMANO XTR CS-M9100-12 (10-51T)
• Kette

  SHIMANO XTR CN-M9100 (122 links)
• Anzahl der Geschwindigkeiten

  12
• Lenker

  RACE FACE Next R 35 RiseBar - diam 35 mm / rise 20 mm / width 780 mm
• Vorbau

  RACE FACE Turbine R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
• Sattelstütze

  KS LEV-Ci Remote Telescopic - diam 30.9 mm / length 440 mm, travel 150 mm
• Sattel

  fi´zi:k Vento Argo R1
• Fahrradgriffe

  KLS Poison
• Felgen

  RACE FACE Next R 31 Carbon 622x31 front / RACE FACE Next R 36 Carbon 584x36 Microspline rear (15x110 mm / 12x148 mm)
• Reifen

  SCHWALBE Nobby Nic Evo Super Trail 62-622 (29"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding / SCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
• Radgröße

  29" / 27,5"
• Hinterer Stoßdämpfer / dämpfer

  ROCK SHOX Super Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)

Weiteres

• Produktcode

  N24000004
